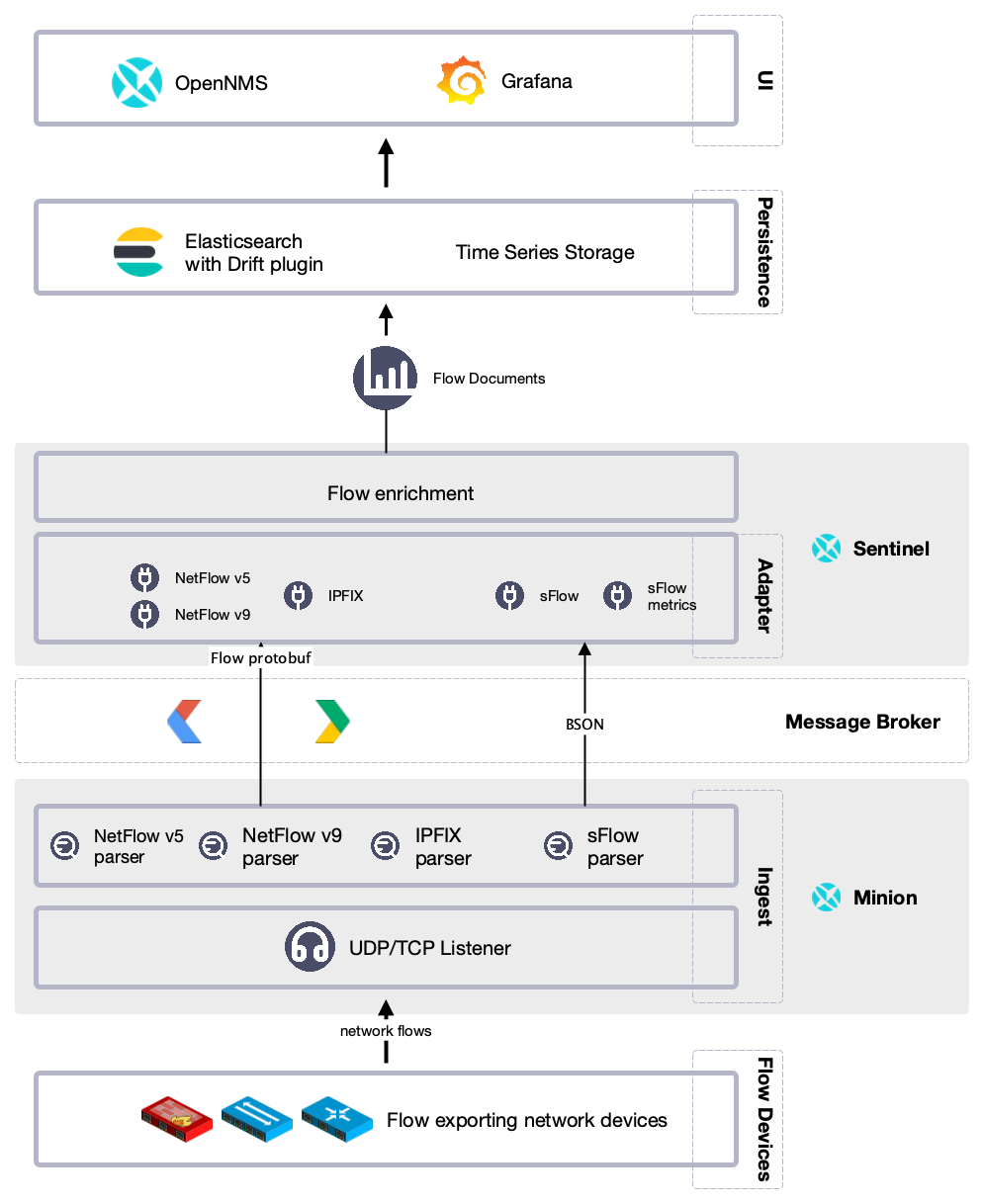

Scale Flow Processing with Sentinel When your flows data collection volume increases to the point that Horizon is too busy processing flows, you can add Sentinel(s) to do the processing instead. Sentinel can do the following: Persist network flow messages with Sentinel to Elasticsearch Consume flow messages from Minions through a message broker (ActiveMQ or Apache Kafka) Generate and send events to the Horizon core instance via message broker Figure 1. Flow integration with Sentinel Before you begin Make sure you have the following: Basic flows environment set up Sentinel installed on your system PostgreSQL, Elasticsearch, and REST endpoint to Horizon core instance running and reachable from the Sentinel node Message broker (ActiveMQ or Apache Kafka) running and reachable from the Sentinel node Credentials for authentication configured for the REST endpoint in the Horizon core instance, message broker, Elasticsearch, and the PostgreSQL database You must set configuration in the etc directory relative to the Horizon Sentinel home directory. Depending on your operating system, the home directory is /usr/share/sentinel for Debian/Ubuntu or /opt/sentinel for CentOS/RHEL. Configure access to PostgreSQL database Connect to the Sentinel Karaf shell via SSH ssh -p 8301 admin@localhost Configure access to the PostgreSQL database config:edit org.opennms.netmgt.distributed.datasource config:property-set datasource.url jdbc:postgresql://postgres-ip:postgres-port/opennms-db-name(1) config:property-set datasource.username my-db-user(2) config:property-set datasource.password my-db-password(3) config:property-set datasource.databaseName opennms-db-name(4) config:update 1 JDBC connection string; replace postgres-ip, postgres-port, and opennms-db-name accordingly. 2 PostgreSQL user name with read/write access to the opennms-db-name database 3 PostgreSQL password for my-db-user user 4 Database name of your Horizon Core instance database Configure access to Elasticsearch Connect to the Sentinel Karaf shell via SSH ssh -p 8301 admin@localhost Configure access to persist flows to Elasticsearch config:edit org.opennms.features.flows.persistence.elastic config:property-set elasticUrl http://elastic-ip:9200(1) config:property-set elasticIndexStrategy hourly(2) config:property-set settings.index.number_of_replicas 0(3) config:property-set connTimeout 30000(4) config:property-set readTimeout 60000(5) config:update 1 Add the URL to the Elasticsearch cluster. 2 Select an index strategy. 3 Set number of replicas; 0 is a default. In production you should have at least 1. 4 Timeout, in milliseconds, Sentinel waits to connect to the Elasticsearch cluster. 5 Read timeout when data is fetched from the Elasticsearch cluster. Set up message broker Kafka ActiveMQ Create a file in etc/featuresBoot.d/flows.boot sudo vi etc/featuresBoot.d/flows.boot Add the following features to Sentinel on startup sentinel-jsonstore-postgres sentinel-blobstore-noop sentinel-kafka sentinel-flows Connect to the Karaf shell via SSH ssh -p 8301 admin@localhost Configure Sentinel tracing and REST endpoint config:edit org.opennms.sentinel.controller config:property-set location SENTINEL(1) config:property-set id 00000000-0000-0000-0000-000000ddba11(2) config:property-set http-url http://core-instance-ip:8980/opennms(3) config:update 1 A location string is used to assign the Sentinel to a monitoring location with Minions. 2 Unique identifier used as a node label for monitoring the Sentinel instance within {page-component-title). Configure Sentinel as Kafka consumer for flow messages config:edit org.opennms.core.ipc.sink.kafka.consumer(1) config:property-set bootstrap.servers my-kafka-ip-1:9092,my-kafka-ip-2:9092(2) config:update 1 Edit the configuration for the flow consumer from Kafka. 2 Connect to the following Kafka nodes and adjust the IPs or FQDNs with the Kafka port (9092) accordingly. Configure Sentinel to generate and send events config:edit org.opennms.core.ipc.sink.kafka(1) config:property-set bootstrap.servers my-kafka-ip-1:9092,my-kafka-ip-2:9092(2) config:update 1 Edit the configuration to send generated events from Sentinel via Kafka. 2 Connect to the following Kafka nodes and adjust the IPs or FQDNs with the Kafka port (9092) accordingly. To use a Kafka cluster with multiple Horizon instances, customize the topic prefix by setting group.id, which is by default set to OpenNMS. You can set a different topic prefix for each instance with config:edit group.id my-group-id for the consumer and sink. Configure the credentials and exit Karaf shell opennms:scv-set opennms.http my-sentinel-user my-sentinel-password(1) 1 Set the credentials for the REST endpoint created in your Horizon Core instance. The credentials are encrypted on disk in ${SENTINEL_HOME}/etc/scv.jce. Exit the Karaf Shell with Ctrl+d Restart the Sentinel to apply the configuration sudo systemctl restart sentinel Run health-check to verify configuration opennms:health-check Ensure features are installed and work properly Verifying the health of the container Verifying installed bundles [ Success ] Connecting to Kafka from Sink Producer [ Success ] Connecting to Kafka from Sink Consumer [ Success ] Retrieving NodeDao [ Success ] Connecting to ElasticSearch ReST API (Flows) [ Success ] Connecting to OpenNMS ReST API [ Success ] => Everything is awesome Create a file in etc/featuresBoot.d/flows.boot sudo vi etc/featuresBoot.d/flows.boot Add the following features to Sentinel on startup sentinel-jsonstore-postgres sentinel-blobstore-noop sentinel-jms sentinel-flows Connect to the Karaf shell via SSH ssh -p 8301 admin@localhost Configure Sentinel tracing, REST and ActiveMQ endpoints config:edit org.opennms.sentinel.controller config:property-set location SENTINEL(1) config:property-set id 00000000-0000-0000-0000-000000ddba11(2) config:property-set http-url http://core-instance-ip:8980/opennms(3) config:property-set broker-url failover:tcp://my-activemq-ip:61616(4) config:update 1 A location string is used to assign the Sentinel to a monitoring location with Minions. 2 Unique identifier used as a node label for monitoring the Sentinel instance within {page-component-title). 3 URL that points to ActiveMQ broker. Configure the credentials and exit Karaf shell opennms:scv-set opennms.http my-sentinel-user my-sentinel-password(1) opennms:scv-set opennms.broker my-sentinel-user my-sentinel-password(2) 1 Set the credentials for the REST endpoint created in your Horizon Core instance 2 Set the credentials for the ActiveMQ message broker The credentials are encrypted on disk in ${SENTINEL_HOME}/etc/scv.jce. Exit the Karaf Shell with Ctrl+d Restart the Sentinel to apply the configuration sudo systemctl restart sentinel Run health-check to verify configuration opennms:health-check Ensure features are installed and work properly Verifying the health of the container Verifying installed bundles [ Success ] Retrieving NodeDao [ Success ] Connecting to JMS Broker [ Success ] Connecting to ElasticSearch ReST API (Flows) [ Success ] Connecting to OpenNMS ReST API [ Success ] => Everything is awesome Enable flow processing protocols Connect to the Sentinel Karaf shell via SSH ssh -p 8301 admin@localhost Netflow v5 Netflow v9 sFlow IPFIX config:edit --alias netflow5 --factory org.opennms.features.telemetry.adapters config:property-set name Netflow-5(1) config:property-set adapters.0.name Netflow-5-Adapter(2) config:property-set adapters.0.class-name org.opennms.netmgt.telemetry.protocols.netflow.adapter.netflow5.Netflow5Adapter(3) config:update 1 Queue name from which Sentinel will fetch messages. By default for Horizon components, the queue name convention is Netflow-5. 2 Set a name for the Netflow v5 adapter. 3 Assign an adapter to enrich Netflow v5 messages. The configuration is persisted with the suffix specified as alias in etc/org.opennms.features.telemetry.adapters-netflow5.cfg. To process multiple protocols, increase the index 0 in the adapters name and class name accordingly for additional protocols. Run health-check to verify adapter configuration opennms:health-check Ensure the configured flow adapters work properly Verifying the health of the container ... Verifying Adapter Netflow-5-Adapter (org.opennms.netmgt.telemetry.protocols.netflow.adapter.netflow5.Netflow5Adapter) [ Success ] config:edit --alias netflow9 --factory org.opennms.features.telemetry.adapters config:property-set name Netflow-9(1) config:property-set adapters.0.name Netflow-9-Adapter(2) config:property-set adapters.0.class-name org.opennms.netmgt.telemetry.protocols.netflow.adapter.netflow9.Netflow9Adapter(3) config:update 1 Queue name from which Sentinel will fetch messages. By default for Horizon components, the queue name convention is Netflow-9. 2 Set a name for the Netflow v9 adapter. 3 Assign an adapter to enrich Netflow v9 messages. The configuration is persisted with the suffix specified as alias in etc/org.opennms.features.telemetry.adapters-netflow9.cfg. To process multiple protocols, increase the index 0 in the adapters name and class name accordingly for additional protocols. Run health-check to verify adapter configuration opennms:health-check Ensure the configured flow adapters work properly Verifying the health of the container ... Verifying Adapter Netflow-9-Adapter (org.opennms.netmgt.telemetry.protocols.netflow.adapter.netflow9.Netflow9Adapter) [ Success ] config:edit --alias sflow --factory org.opennms.features.telemetry.listeners config:property-set name SFlow(1) config:property-set adapters.0.name SFlow-Adapter(2) config:property-set adapters.0.class-name org.opennms.netmgt.telemetry.protocols.sflow.adapter.SFlowAdapter(3) config:update 1 Queue name from which Sentinel will fetch messages. By default for Horizon components, the queue name convention is SFlow. 2 Set a name for the sFlow adapter. 3 Assign an adapter to enrich sFlow messages. The configuration is persisted with the suffix specified as alias in etc/org.opennms.features.telemetry.adapters-sflow.cfg. To process multiple protocols, increase the index 0 in the adapters name and class name accordingly for additional protocols. Run health-check to verify adapter configuration opennms:health-check Ensure the configured flow adapters work properly Verifying the health of the container ... Verifying Adapter SFlow-Adapter (org.opennms.netmgt.telemetry.protocols.sflow.adapter.SFlowAdapter) [ Success ] config:edit --alias ipfix --factory org.opennms.features.telemetry.listeners config:property-set name IPFIX(1) config:property-set adapters.0.name IPFIX-Adapter(2) config:property-set adapters.0.class-name org.opennms.netmgt.telemetry.protocols.netflow.adapter.ipfix.IpfixAdapter(3) config:update 1 Queue name from which Sentinel will fetch messages. By default, for Horizon components, the queue name convention is IPFIX. 2 Set a name for the IPFIX adapter. 3 Assign an adapter to enrich IPFIX messages. The configuration is persisted with the suffix specified as alias in etc/org.opennms.features.telemetry.adapters-ipfix.cfg. To process multiple protocols, increase the index 0 in the adapters name and class name accordingly for additional protocols. Run health-check to verify adapter configuration opennms:health-check Ensure the configured flow adapters work properly Verifying the health of the container ... Verifying Adapter IPFIX-Adapter (org.opennms.netmgt.telemetry.protocols.netflow.adapter.ipfix.IpfixAdapter) [ Success ] Using Minions as a flow collector Flows Classification
