Grafana Dashboard Box

Grafana provides an API key that lets third-party applications access it. Horizon uses Grafana to generate visualizations, including the Grafana Dashboard Box on the home page. By default, it shows a set of dashboards related to Horizon and your monitored environment.

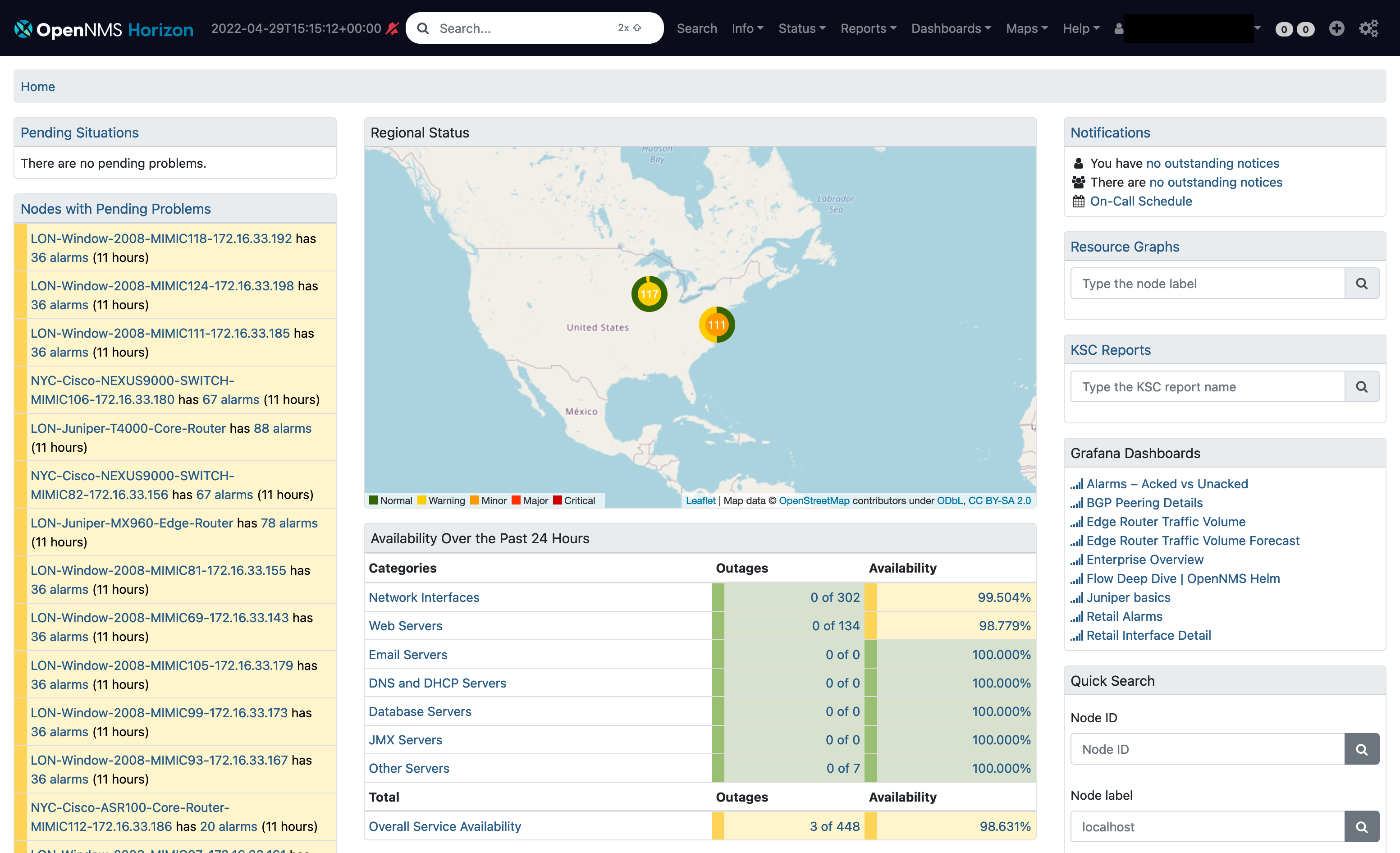

Figure 1. Grafana dashboards on the Horizon home page

Filter dashboards

To filter for relevant dashboards, you can use a dashboard’s tag (defined by the org.opennms.grafanaBox.tag property) and make it accessible. If no tag is provided, all Grafana dashboards are shown.

You can configure this feature by creating or editing ${OPENNMS_HOME}/etc/opennms.properties.d/grafana.properties.

Table 1. Grafana Dashboard Box configuration properties
Name	Description	Type	Default
org.opennms.grafanaBox.show	Determines whether a Grafana Dashboard Box showing the available dashboards is included on the home page.	Boolean	`false`
org.opennms.grafanaBox.hostname	The hostname of the Grafana server. You may need to use the IP address or fully qualified domain name, based on your DNS records.	String	`localhost`
org.opennms.grafanaBox.port	The port for the Grafana server’s REST API.	Integer	`3000`
org.opennms.grafanaBox.basePath	The base path to Grafana.	String	Empty string
org.opennms.grafanaBox.apiKey	The Grafana API key. This key is needed for REST calls to work. Refer to the official Grafana HTTP documentation for details on generating an API key.	String	Empty string
org.opennms.grafanaBox.tag	A tag that specifies which dashboards to display in the Grafana Dashboard Box. The tag must be assigned to an existing dashboard for it to be included. When no tag is specified, all dashboards are displayed.	String	Empty string
org.opennms.grafanaBox.protocol	The protocol for the REST call.	String	`http`
org.opennms.grafanaBox.connectionTimeout	Connection timeout, in milliseconds, for fetching information from the Grafana server.	Integer	`500`
org.opennms.grafanaBox.soTimeout	Socket timeout, in milliseconds.	Integer	`500`
org.opennms.grafanaBox.dashboardLimit	The maximum number of entries to display. Setting the value to `0` will display an unlimited number of entries.	Integer	`0`
org.opennms.grafanaBox.link.protocol	The protocol used to build each dashboard URL.	String	`org.opennms.grafanaBox.protocol`
org.opennms.grafanaBox.link.hostname	Hostname used to build each dashboard URL.	String	`org.opennms.grafanaBox.hostname`
org.opennms.grafanaBox.link.port	The port used to build each dashboard URL.	Integer	`org.opennms.grafanaBox.port`
org.opennms.grafanaBox.link.basePath	The Grafana base path used to build each dashboard URL.	String	`org.opennms.grafanaBox.basePath`

If you have Grafana set up behind a reverse proxy, you may need to define the org.opennms.grafanaBox.link.* properties. The link.* properties, if defined, are used to build the user-facing URLs, independent of other properties that are used for internal interaction with the Grafana REST API.
